IDS SYSTEM ACCESSORIES

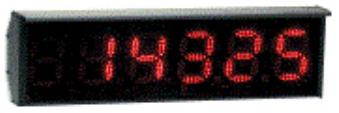

Remote DisplaysDesigned for indoor and outdoor use, offering a full range of all alpha and numeric
2 to 6 Inch Super Bright LED characters. Options: Red/Green Lights for Traffic Control or Status Indicators, Time/Temp,
LB/KG/GR/NT Indication, RF Wireless and 4-20 mA input. Standard Product Specifications: Input - 20 mA Current Loop / RS232 / RS422/485
Baud Rates - 300 to 19200 Voltage - 117 VAC 50/60 Hz or 12 VDC @1.25 Amps Enclosure - Steel Rolled with black powder coating
(Consult Factory)

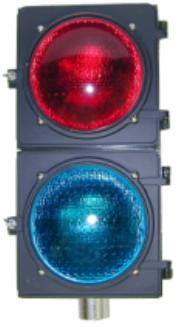

Red/Green Traffic & Control LightUsed for Traffic Controls in Axle weighing and Over Under Indicators in
Check Weighing or On/Off Indicators. Internal A/C Terminal Blocks. Relay Module Needed. Visors, End Cap, 1-1/2” Pipe Thread Adaptor
and Bulbs Included
(Consult Factory)

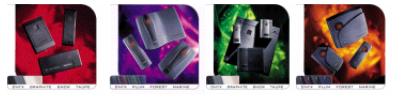

RFID Proximity Readers & Cards 18 Inch Read Range For Outdoor/Indoor Use.
(Consult Factory)
Barcode Scanners and Pin Wands
(Consult Factory)
IDS Radio Frequency RF Modules/Modems Replace cable in new equipment installations as well as
retrofitting without costly wiring. Set up equipment where it best serves customers. Upload & download data to your PC.
The system can be set up in minutes to enable local-area communication in industrial, commercial and office applications.
Provide reliable communication at up to 115.2 Kbps even in RF-hostile environments. Industrial-grade enclosure contains
a robust 2.4GHz or 900MHz transceiver. Each communication system requires a central server node and any number of remote
client nodes that operate in point-to-point or point-to-multipoint configurations. Users can create multiple sub-networks
by assigning unique radio addresses to specific device groups.
(Consult Factory)
Dial up Serial Modem/Data Logger/TTL Control Store up to 16 megabytes of record data at remote sites
for periodic retrieval. It can also be used for alarm monitoring and event reporting and is compatible with most telephone systems.
Transmits through a standard RS-232 serial port. This data can then be downloaded from a remote location. Contact closures that will
trigger a call-in to a service center. Connect to 4 different serial devices from a remote location. Control And Extract Reports From
IDS Products Via PC.
(Consult Factory)
Bill Acceptor for Pay & Weigh Systems New Bill Type Acceptor Modules pre-configured to interface to an
IDS Instrument. We Have Axle Weighers and various other All-In One & Custom Systems
(Consult Factory)
Junction Box Four Channel, Individual Signal Trim Pots & Load Cell Switches For Diagnostic Testing.
Removeable Terminal Blocks. Lightning & Welding Protection.
(Consult Factory)
The Model 8501 External Relay Module in NEMA Enclosure. The 4-Channel Input / Output Relay Module
is used for Activating Motors, Solenoids and Switching and Receiving Signal Lines. Bulk-Weighing, Setpoints, Remote Sensing
Interlocks, Push Buttons and TTL Outputs. A/C and DC Relays are Available.
(Consult Factory)
The Model 8502 Intrinsic Safety Barriers Enclosed in a NEMA Enclosure. Used in Hazardous Environments
with Digital Weight Indicators.
(Consult Factory)
The Radio Frequency Relay Input/Output Modules RF Remote Control Modules are designed for Industrial Applications.
Remote Zero, Print, Tare. Execute a Function. Each transmitter is factory programmed with a unique serial number. The receivers learn
this serial number and store it in EEPROM, which does not require a backup power system to retain serial number codes.
Each receiver can learn up to four different transmitter serial numbers. Special orders can be placed for multiple transmitters
with the same serial number if needed. FCC approved, Keychain size, Range: 150ft. typ., Can be used with 2, 4 and 8CH RF receivers
PCB size: approx: 1.3"x1.3".
(Consult factory for quote)
The Photoelectric Sensor With Built-In Amplifier Kit Includes: Retro-reflective Photo Sensor, Reflector,
Adhesive back reflector sheet, Photo-Sensor provides long sensing distance - 4 m (13.12’). Enclosure rating (IP67 - IEC60529)
Switch selectable Light-ON/Dark-ON operation. Optional NEMA Fiberglass Enclosure with Opto-22 Relay & 12-24 VDC Power supply
available.
(Consult Factory)
IDS Start Stop/Control Module The IDS Start, Stop, Print, Tare, Zero & Control Module Mounted in NEMA
Enclosure with Terminal Block and Liquid Tight Cable Cinch Tights Various Switch Configurations and Sizes Available.
(Consult Factory)
